Micro Speedo

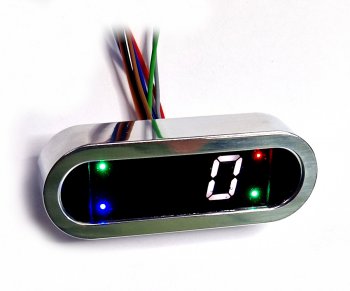

Micro-Speedo

Don't fancy a clock store or Christmas tree on your bike and only want to fit the bare essentials of a speedometer to your bike? Then the Micro-Speedo is the right choice. The size of the Micro-Speedo is 59 mm x 22 mm x 14 mm.

The speedometer is very easy to use: If the button is pressed and held down when the power supply is switched on, the wheel circumference appears on the display in cm and counts up between 50 cm and 220 cm until the button is released. The last value is then saved in the module. If the button is pressed while driving or during a break, the daily kilometers driven appear on the display for about 1 second. After 1 second appear the total kilometers in 5 fast following letters and the daily kilometers are reset to zero. The 4 LEDs on the outside indicate neutral, high beam, indicators and oil pressure. Debouncing by the software allows the use of almost all common wheel sensors. However, we have tested the speedo only with our own sensor.

Here you can download the manual (pdf)
